TARCA® – The Original for Heavy-Duty Monorail and Crane Runway Systems

TARCA® – The Future Runs on Rails

For over 100 years, TARCA® has stood for robust, high-precision, and long-lasting solutions in the field of monorail and crane runway systems. Industries such as food production, heavy industry, foundries, logistics, and aerospace around the world rely on CTI expertise.

Whether it’s a new installation, expansion, or modernization, TARCA® offers tailor-made turnkey solutions for efficient, safe, and cost-effective material handling.

TARCA® – Technological Advantage Through Innovative Manufacturing

What makes TARCA® rails unique is their manufacturing process: a specially developed, rolled high-carbon alloy steel is automatically welded to a web and top flange made of high-strength structural steel.
This process creates a form-fitting, extremely load-bearing profile with an exceptionally long lifespan and durability, far superior to conventional rolled profiles.

TARCA® – Versatile Applications and Proven Components

The modular TARCA® system forms the basis for robust and precise suspended material handling systems. Thoughtfully designed components ensure maximum flexibility and process reliability without occupying valuable floor space.

The Modular TARCA® System at a Glance

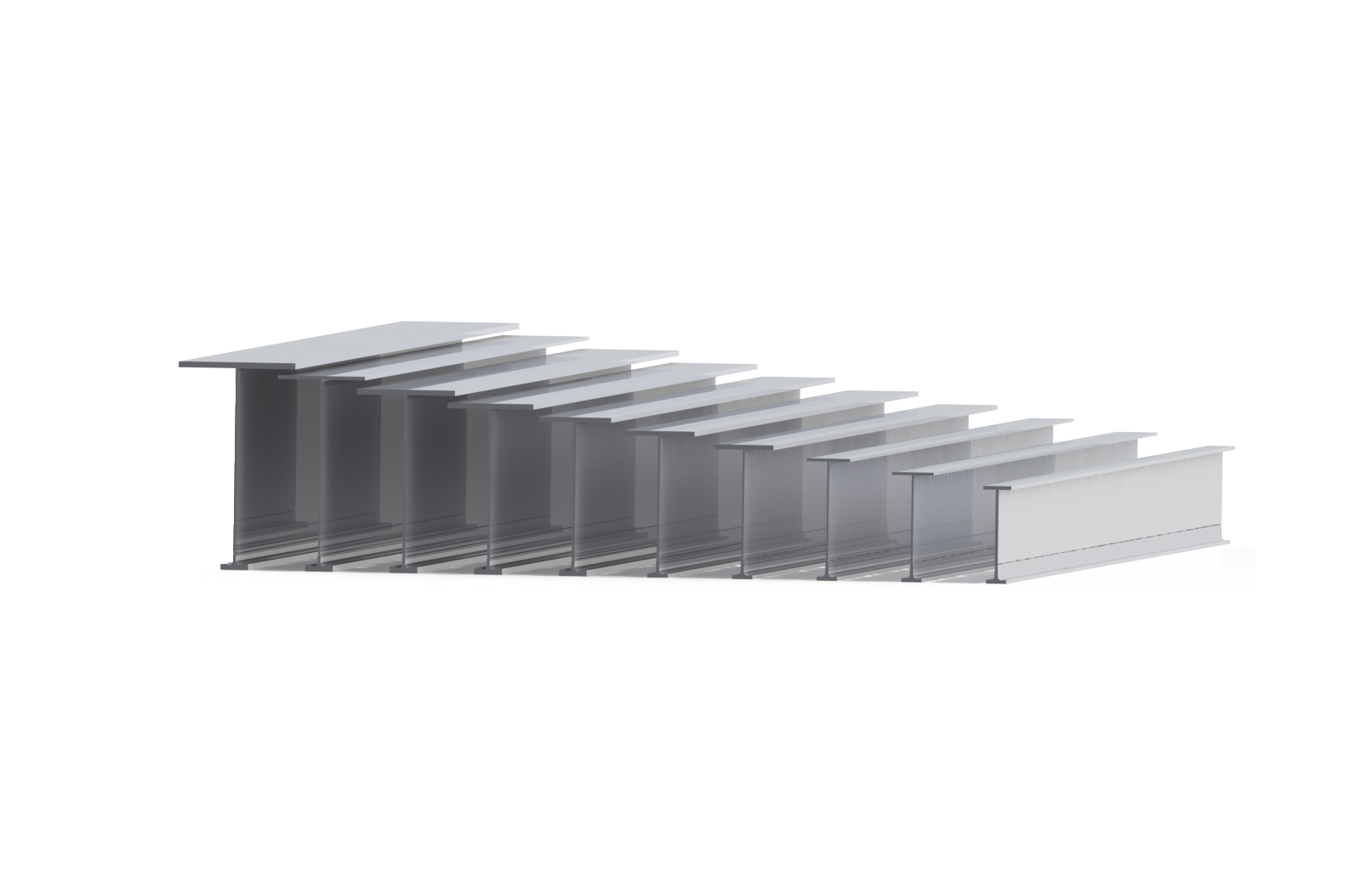

  • Rail profiles:
    • Standard TARCA®: For conventional applications
    • Super TARCA®: For maximum loads and extreme use cases
  • Beam heights ranging from 250 mm to 1,250 mm – custom designs are also common.
  • Curve systems: TARCA® rails can be curved, with radii starting at 1,250 mm, perfectly matched to your system layout.
  • Switches & Transfer bridges: Enable smart direction changes and flexible system configurations.
  • Bogies & Drive units: Available as powered or unpowered versions, equipped with wheel breakage protection and fall arrest systems.
  • Lifting/lowering stations
  • Locking systems: Automated HC and HS locking systems for maximum safety and operational convenience.
  • Crossover systems: Fixed crossovers enable seamless transfer of goods between adjacent bays.
  • Flexible suspensions: Prevent stress peaks and reduce installation costs.
  • Large spans with minimal suspension points are also feasible, as well as multi-bay crane systems spanning even greater distances — ideal for efficient material handling in industrial and logistics environments.
